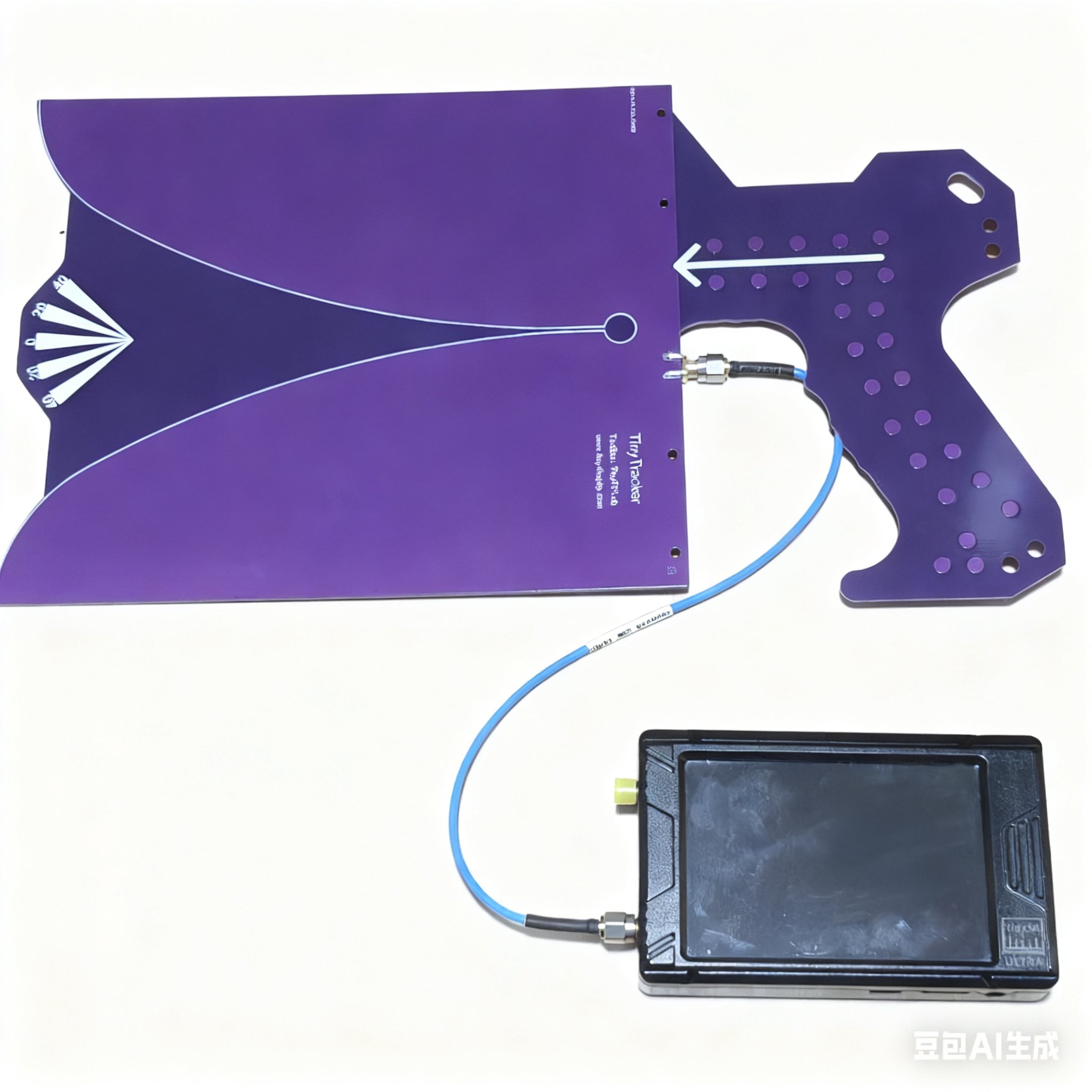

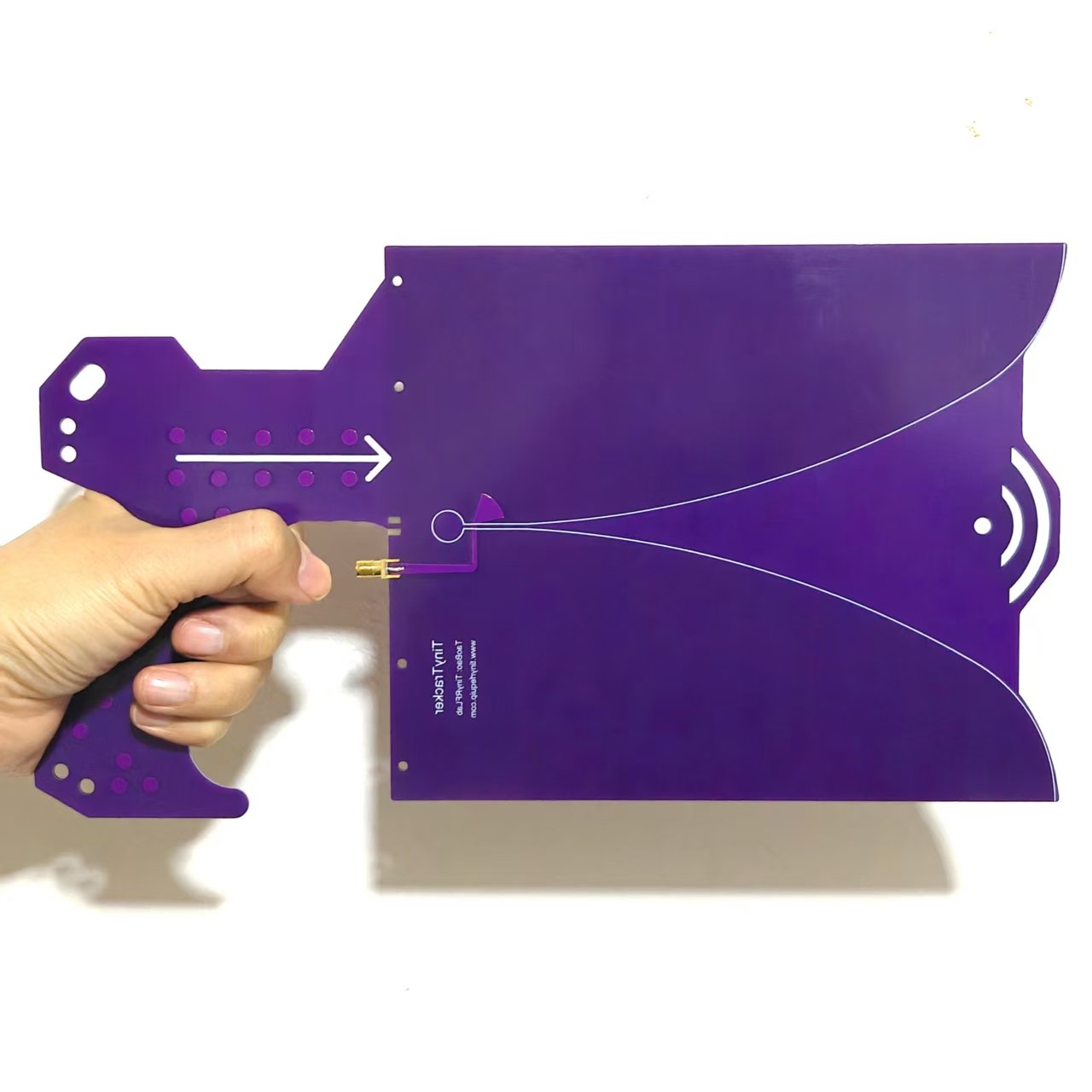

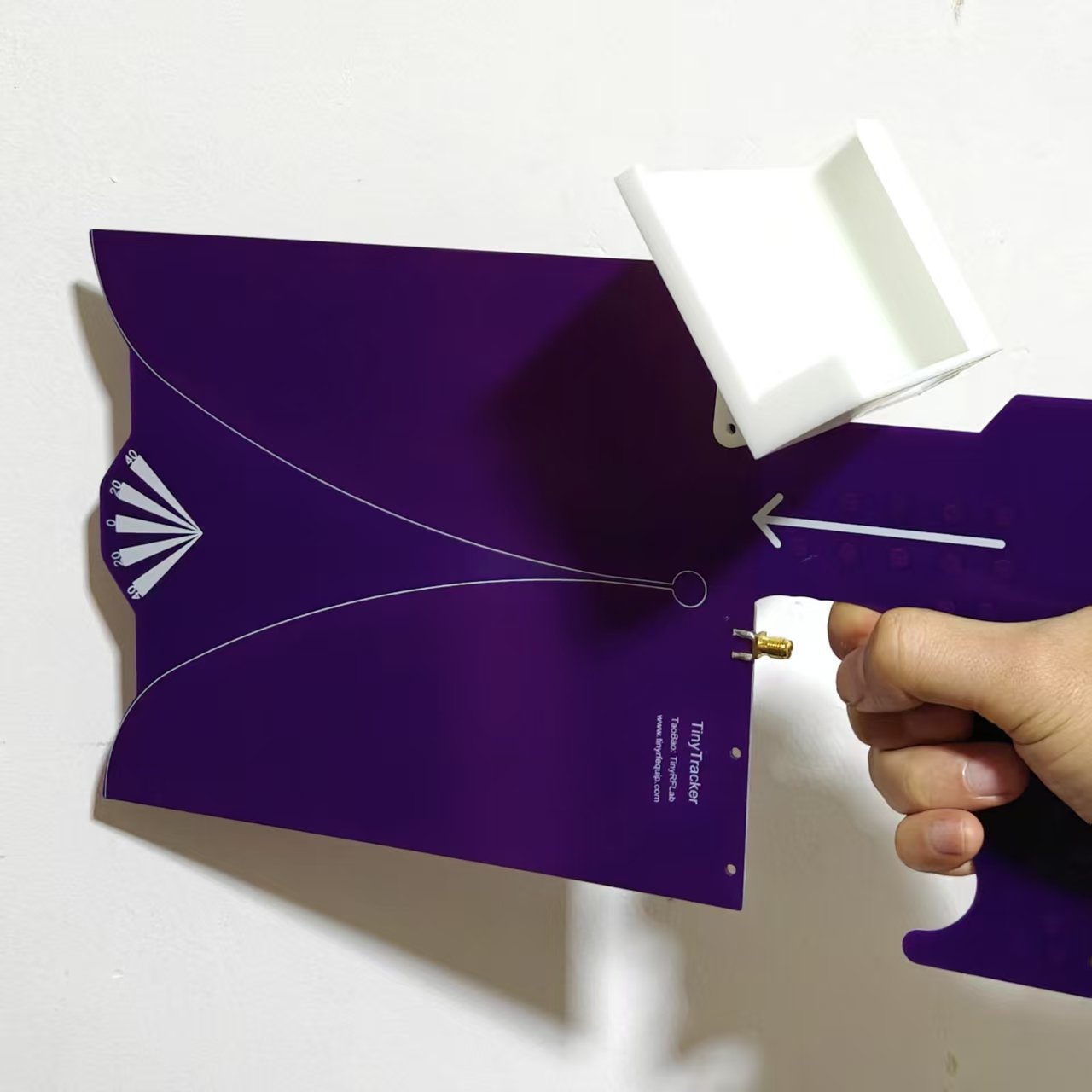

TinyTracker is a high-precision Vivaldi directional antenna independently designed by our store. The Vivaldi antenna is an excellent broadband traveling wave antenna with features such as end radiation, wide operating frequency band, and low profile. It can support frequency bands of 100MHz-8GHz and has excellent direction finding performance, especially in the range of 700MHz-8GHz, with a gain of 6-9dBi. The direction finding distance is within a radius of 200 meters, with an extremely wide range.

Can be used for direction finding, spectrum analysis, signal analysis, positioning, broadband measurement, direction finding, etc. Providing continuous high field strength requirements for EMC testing, it is an ideal testing and direction finding antenna for measuring electromagnetic interference.

On our official website, you will receive an electronic user manual at www.tinyrfequip.com. All relevant materials, including firmware, GUI, operation manual, circuit diagram, and software control program, will be obtained on the cloud drive.

Link:https://drive.google.com/drive/folders/1YZBoOaVeXCeArZZNnu49Q4pUKuTufpCc?usp=drive_lin

Size: 325 * 180 * 1.6mm

Weight: 120g

Connector: SMA Female

Impedance: 50ohm
