N-type VNA Calibration Toolkit DC-8.5G

  • High precision: Carefully inspect, calibrate, and verify the Keysight instrument.
  • It can completely replace expensive calibration parts. For example, replacing Agilent 8503
  • Calibration tookits and through support up to 8.5G.
  • N female heads are a complete set: open, short, load. In addition, reliable N-head male and female throughs are provided.

TaoBao:高精度网分网络分析仪校准件 N型 DC-8.5GHz 平替安捷伦 是德8503-淘宝网

AliExpress: High precision network analyzer N-type Calibration Part DC-8.5GHz Replace Agilent - AliExpress 1420

The calibration kits for VNA vector network analyzer are precision instruments, and the quality is also uneven. There are a large number of cheap calibration parts on the platform that cannot be compared with this product. Each one of this product has been carefully inspected, calibrated and verified by Keysight instrument, and can completely replace Agilent's 85032F 85054D calibration parts, while providing certain technical support.

At present, it has been widely used by major network branch manufacturers, and the product has been verified to be reliable by numerous manufacturers and finely calibrated by professional equipment. It can completely replace expensive calibration part.

It can also be used as a gift for other RF engineers, please feel free to use it. Produced by TinyRFEquip, it must be a premium product.

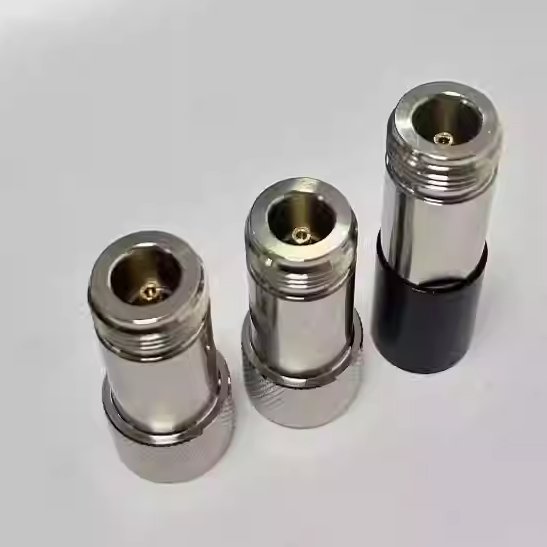

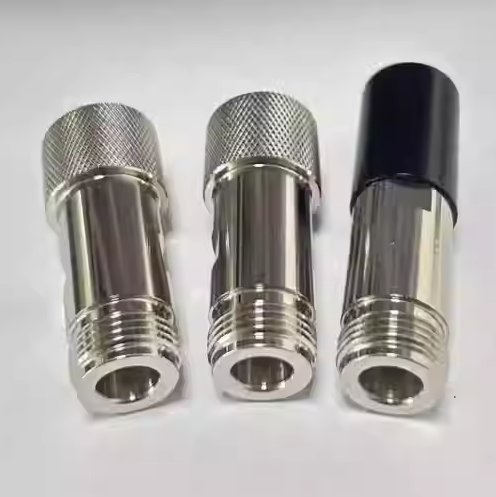

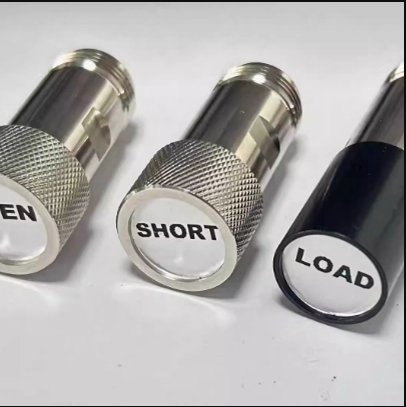

A set of three,  OPEN terminal

                             SHORT terminal

                             Load 50 ohm

If there are other requirements, they can also be separately matched.


LOAD:   VSWR    DC~3G < 1.035

                                3G~6G<1.055

THROUGH: VSWR 1.15    Insertion Loss  0.2dB
