TinySA

Portable TinySA Spectrum Analyzer, Upgraded V0.3.1 Handheld Tiny Frequency Analyzer 100kHz to 960MHz MF/HF/VHF UHF Input, 2.8 inch Touch Screen with ESD Protect Function

Product details

  • Package Dimensions ‏ : ‎ 10.35 x 7.6 x 1.3 inches; 2.2 Pounds
  • Batteries ‏ : ‎ 1pcs of  500mah Lithium Ion batteries required. (included)
  • Frequency Range :Tiny Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 3kHz and 640kHz. Color display showing 290 scan points covering up to the full low or high frequency rangefrequency range. The tinySA contains all the components of a conventional heterodyne swept spectrum analyzer
  • Built-in Calibration Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator that is used for automatic self test and low input calibration. But the SG function is not careful calibration, so the output level is not very accurate, just as a reference.
  • Tiny Spectrum analyzers & ESD Function: Switchable resolution bandpass filters for both ranges between 3kHz and 640kHz.Color display showing 290 scan points covering up to the full low or high frequency range. Bulit-in rechargeable battery allowing a minimum of at least 2 hours portable use.With a new ESD protrcted function enable the product to have a higher antistatic level and a longer service life
  • PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer.The USB interface implements the Serial over USB (CDC) protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel

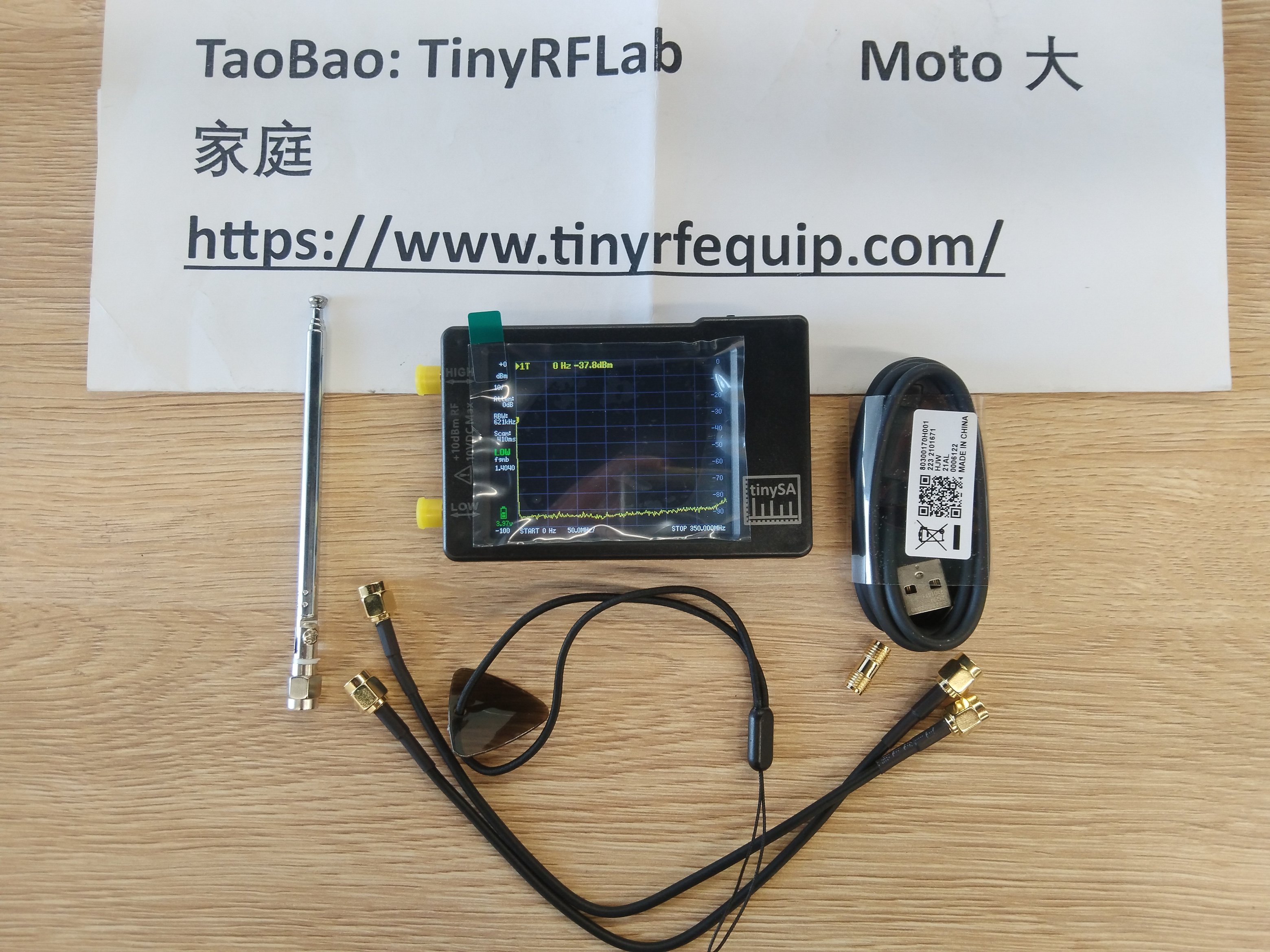

  • Package List: 1x Tiny Spectrum Analyzer; 2 x 20cm RF Cable;1 x USB Cable;1 x SMA Female to Female Connector;1x Touchscreen Pen;1 x SMA Telescopic Antenna.It's very useful as an antenna analyzer for your ham station, easy to set without fancy calibration.The firmware of the tinySA can be updated by the user. New versions of the firmware needed please contact seller for download link
  •
